Janhoo’s 1310nm Semiconductor Optical Amplifiers (SOAs) chip on carrier are designed for high gain, high powerful, low PDL and wide
band SOA which goes into the standard GR-468-CORE.

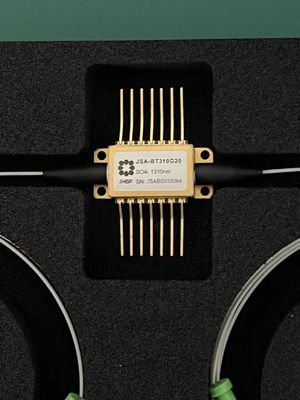

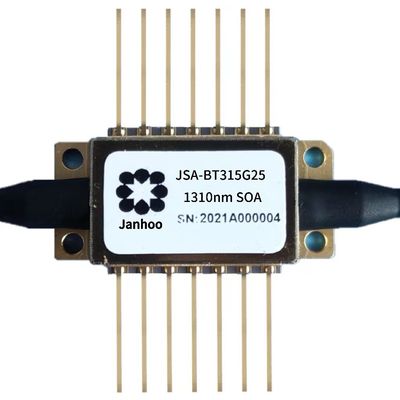

Janhoo 1310nm Butterfly SOA Semiconductor Optical Amplifier
Basic Properties
Place of Origin:
CHINA
Brand Name:
JANHOO
Model Number:
JSA-BT315G25
Trading Properties
Price:
$550.00/sets 1-9 sets
Supply Ability:
200 Piece/Pieces per Month
Product Summary
1310 Semiconductor Optical Amplifier SOA Janhoo’s 1310nm Semiconductor Optical Amplifiers (SOAs) chip on carrier are designed for high gain, high powerful, low PDL and wide band SOA which goes into the standard GR-468-CORE. Janhoo Semiconductor Optical Amplifier Applications * Semiconductor Optical ...
Product Details
Type:
Soa Semiconductor Optical Amplifier
Use:
Optical Communication
Warranty Time:
3 Yrs
Network:
None
Port:
Tianjin
Product Name:
Janhoo Semiconductor Optical Amplifier
Application:
Semiconductor Optical Amplifier
Product Description
1310 Semiconductor Optical Amplifier SOA
Janhoo Semiconductor Optical Amplifier Applications
* Semiconductor Optical Amplifiers (SOAs) in butterfly or small box packages goes for 40G/100G LWDM High-Speed amplification.
* Improve the budget of optical power, integrate in ROSA and TOSA of 100G optical transceiver.
* Improve the budget of optical power, integrate in ROSA and TOSA of 100G optical transceiver.
* It can be Integrated in Silicon-based integrated photonic devices, compensate for the loss of 1310nm optical signals.
Janhoo Semiconductor Optical Amplifier Typical Characteristics
Janhoo Semiconductor Optical Amplifier Specifications(chip temperature @25℃)
|
Parameter
|
Symbol
|
Condition
|
Min.
|
Typ.
|
Max.
|
Unit
|
|
Drive Current
|
If
|
|
---
|
250
|
350
|
mA
|
|
Operating Wavelength
|
λ
|
T=25℃
|
1260
|
1310
|
1340
|
nm
|
|
3dB Optical Bandwidth
|
Dλ3dB
|
@-3dB
|
40
|
70
|
---
|
nm
|
|
Small Signal Gain
|
Gmax
|
If=120mA
Pin=-25dBm |
25
|
---
|
---
|
dB
|
|
Gain Ripple
|
DG
|
|
|
0.5
|
1
|
dB
|
|
Saturation Output Power
|
Psat
|
If=120mA
|
10
|
---
|
---
|
dBm
|
|
Noise Figure
|
NF
|
|
---
|
7.5
|
---
|
dB
|
|
Polarization Dependent Gain
|
PDG
|
|
---
|
1.0
|
2.0
|
dB
|
|
TEC Drive Current
|
ITEC
|
|
|
---
|
1.8
|
A
|
|
TEC Drive Voltage
|
VTEC
|
|
|
---
|
3.4
|
V
|
|
Thermistor Resistance
|
Rtherm
|
T=25℃
|
9.5
|
10
|
10.5
|
KΩ
|
|
Air tightness
|
|
T=25℃
|
1*10-12
|
1*10-11
|
1*10-8
|
Pa.m3/s
|
|
Power Consumption
|
P
|
---
|
---
|
---
|
4
|
W
|
|
Working Temperature
|
TC
|
I=Iop
|
-10
|
---
|
70
|
°C
|
|
Storage Temperature
|
Tstg
|
---
|
-40
|
---
|
85
|
°C
|
Janhoo Semiconductor Optical Amplifier STRUCTURE
