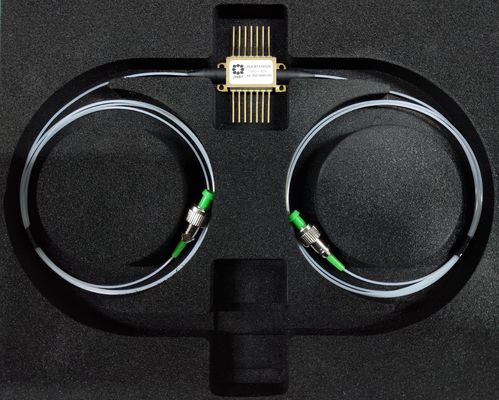

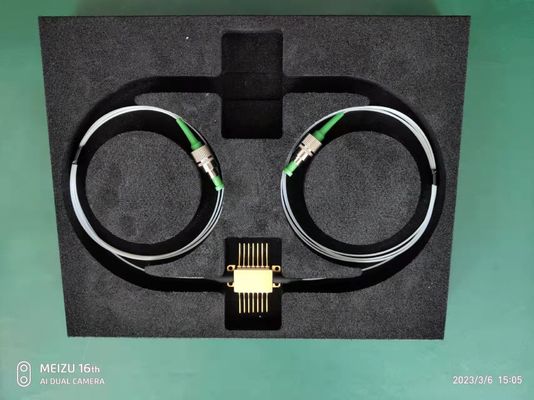

Janhoo 1550nm Polarization Maintaining Butterfly SOA Semiconductor Optical Amplifier
Basic Properties
Place of Origin:
CHINA
Brand Name:
JANHOO
Model Number:

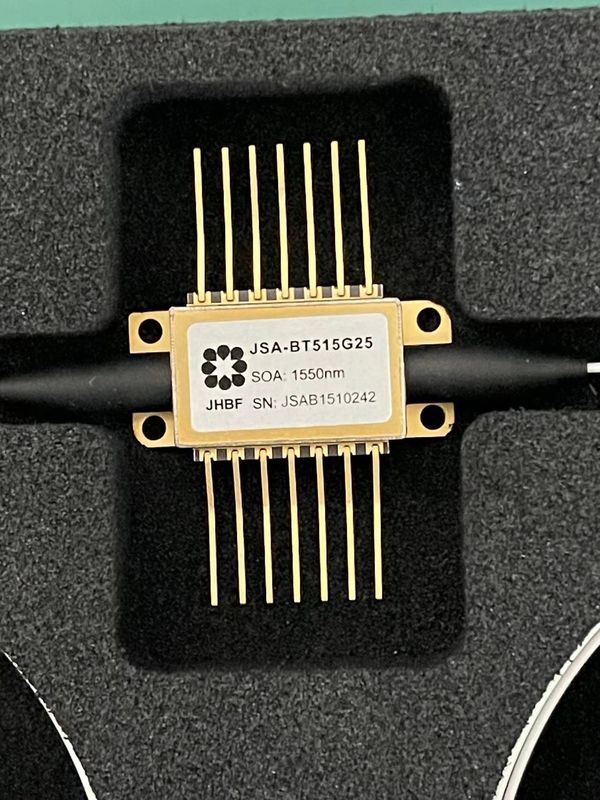

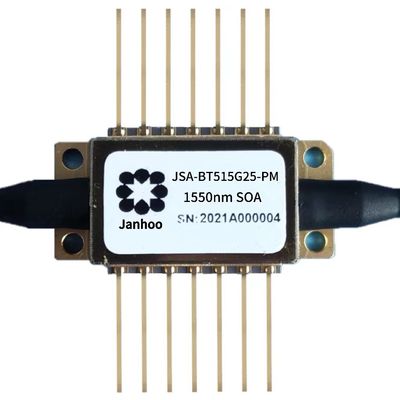

JSA-BT515G25-PM
Trading Properties
Price:
$1,400.00/sets 1-9 sets
Product Summary
Janhoo Semiconductor Optical Amplifier Product Features All process made in China, independent and controllable Low power consumption, typical drive current 120mA, to meet the needs of high-speed ROSA low-power requirements Janhoo Semiconductor Optical Amplifier support temperature monitoring and ...
Product Details
Packaging Type:
Full Packed
Function:
Supports Temperature Monitoring And TEC Thermoelectric Control To Ensure Stable Operation Over The Full Temperature Range, High Gain, High Output Optical Power (25dBm), Low Power Consumption, Low Polarisation Dependent Loss
Application:
Applied In Distributed Fiber Optic Sensing System To Replace Acousto-optic Modulator For Optical Switching Function, Applied In Broad Spectrum Light Source Such As Fiber Grating Demodulator Broad Spectrum Light Source, Application In Optical Communication
Operating Temperature:
Min -40, Max 80
Type:
Polarization-Maintaining Butterfly SOA, SOA, SOA
Package / Case:
Butterfly
Voltage - Supply:
250mA
Series:
1550nm Polarization-Maintaining Butterfly SOA
Mounting Type:
Data Centre Interconnection 40G 100G Optical Signal Amplification
Size / Dimension:
Full Details Are Given In Product Specification
Description:
Janhoo Semiconductor Optical Amplifier
Manufacturing Date Code:
20231112
Manufacturer:
Janhoo
Output Type:
FC/APC
WeChat:
15110138935
Product Name:
SOA
Style:
Professional
Quality:
100% Original 100% Brand
Product Description
Janhoo Semiconductor Optical Amplifier Product Features
- All process made in China, independent and controllable
- Low power consumption, typical drive current 120mA, to meet the needs of high-speed ROSA low-power requirements
- Janhoo Semiconductor Optical Amplifier support temperature monitoring and TEC thermoelectric control, stable operation in full temperature operating range
- Customisation service: support for higher integration devices such as polarization-maintaining, integrated isolator, integrated PD optical power monitoring and so on
Janhoo Semiconductor Optical Amplifier Product Applications
- Janhoo Semiconductor Optical Amplifier applied in distributed fiber optic sensing system to replace acousto-optic modulator for optical switching function
- Applied in broad spectrum light source, such as fiber grating demodulator broad spectrum light source
- Application in optical communication system, to achieve 1550 wavelength optical signal amplification, can replace part of the EDFA application
- Apply to 1550nm solid-state LIDAR or FM continuous wave LIDAR, combined with narrow linewidth lasers to generate pulsed light
Janhoo Semiconductor Optical Amplifier Product Specifications
Janhoo Semiconductor Optical Amplifier Typical characteristics
Janhoo Semiconductor Optical Amplifier Structure Dimensions and Pin Definitions
