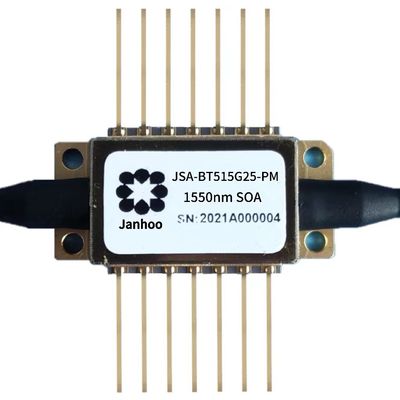

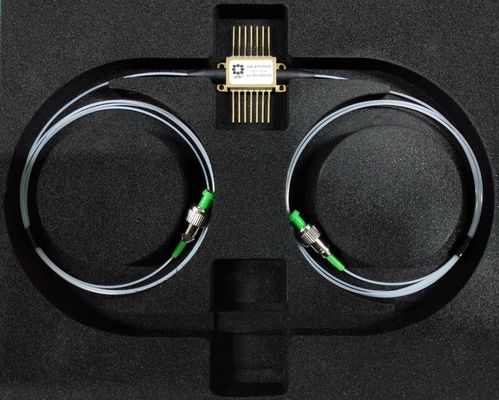

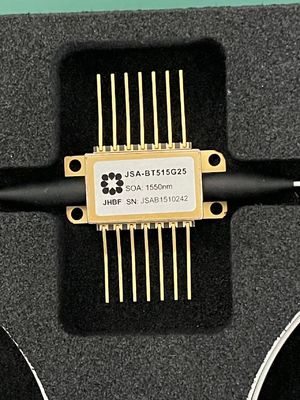

Janhoo Advanced 1550nm PM SOA 14pin Butterfly For Optical Fiber Sensing System Janhoo Semiconductor Optical Amplifier
Basic Properties
Place of Origin:
TianJin
Brand Name:
Janhoo
Model Number:
JSA-BT515G25-PM
Trading Properties
Price:
$900.00/sets 1-9 sets
Supply Ability:
200 Piece/Pieces per Month
Product Summary
Janhoo Semiconductor Optical Amplifier 1550nm PM Semiconductor optical amplifier SOA Butterfly Janhoo’s 1550nm PM (Polarization maintaining) Semiconductor Optical Amplifiers (SOAs) are designed for high gain, high powerful, low PDG SOA which goes into the standard GR-468-CORE. Janhoo Semiconductor ...
Product Details
Type:
Soa Semiconductor Optical Amplifier
Use:
Fiber Sensing System
Warranty Time:
3 Yrs
Wavelength:
1490nm~1590nm
3db Optical Bandwidth:
>55nm
Forward Current(If):
250mA(typical),400mA(max)
Small Signal Gain:
>25dB(@If=250mA)
Saturation Output Power(Psat):
>12dBm(@If=250mA)
Polarization Dependent Gain(PDG):
<2dB
Gain Ripple:
<1dB
Turn Off Extinction Ratio:
>55dB
Port:
Tianjin
Product Name:
Janhoo Semiconductor Optical Amplifier
Product Description
Janhoo Semiconductor Optical Amplifier 1550nm PM Semiconductor optical amplifier SOA Butterfly
Janhoo’s 1550nm PM (Polarization maintaining) Semiconductor Optical Amplifiers (SOAs) are designed for high gain, high powerful, low PDG SOA which goes into the standard GR-468-CORE.
Janhoo Semiconductor Optical Amplifier Applications
* Used for optical sensing system, to replace AOM+EDFA.
* Used for FMCW Lidar to extend detection distance.
* Used for FMCW Lidar to extend detection distance.
* Used for PON network (FTTX) relay amplification.
Janhoo Semiconductor Optical Amplifier HighLights
* High Electric-optical Conversion Efficiency, Low Power Consumption.
* Built-in Isolator.
* Low PDG.
* Built-in Isolator.
* Low PDG.
* Support polarization-maintaining amplification.
Janhoo Semiconductor Optical Amplifier Typical Characteristics
Janhoo Semiconductor Optical Amplifier Specifications ( @25℃)
|
Parameter
|
Symbol
|
Working conditions
|
Min.
|
Typ.
|
Max.
|
Unit
|
|
Wavelength
|
λ
|
---
|
1490
|
---
|
1590
|
nm
|
|
Operating Wavelength
|
Δλ
|
@-3dB
|
55
|
---
|
60
|
nm
|
|
Drive Current
|
If
|
---
|
---
|
250
|
400
|
mA
|
|
Saturation Power
|
Psat
|
If=120mA
|
12
|
---
|
15
|
dBm
|
|
Small Signal Gain
|
G
|
---
|
25
|
---
|
30
|
dB
|
|
Turn off extinction ratio
|
|
---
|
---
|
50
|
---
|
dB
|
|
Polarization Dependent Gain
|
PDG
|
---
|
---
|
1.0
|
2.0
|
dB
|
|
Forward Voltage
|
Vf
|
---
|
---
|
---
|
1.8
|
V
|
|
Spot Size
|
θL/θT
|
---
|
---
|
16/30
|
---
|
°
|
|
Operating Temperature
|
TC
|
I=Iop
|
-10
|
---
|
70
|
℃
|
|
Storage Temperature
|
Tstg
|
---
|
-40
|
---
|
85
|
℃
|
Janhoo Semiconductor Optical Amplifier Dimensions and Pin Definition
