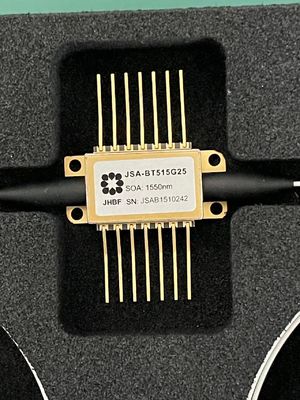

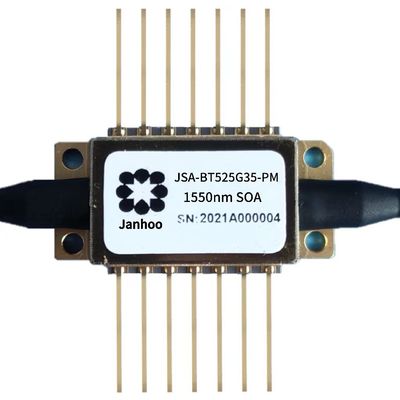

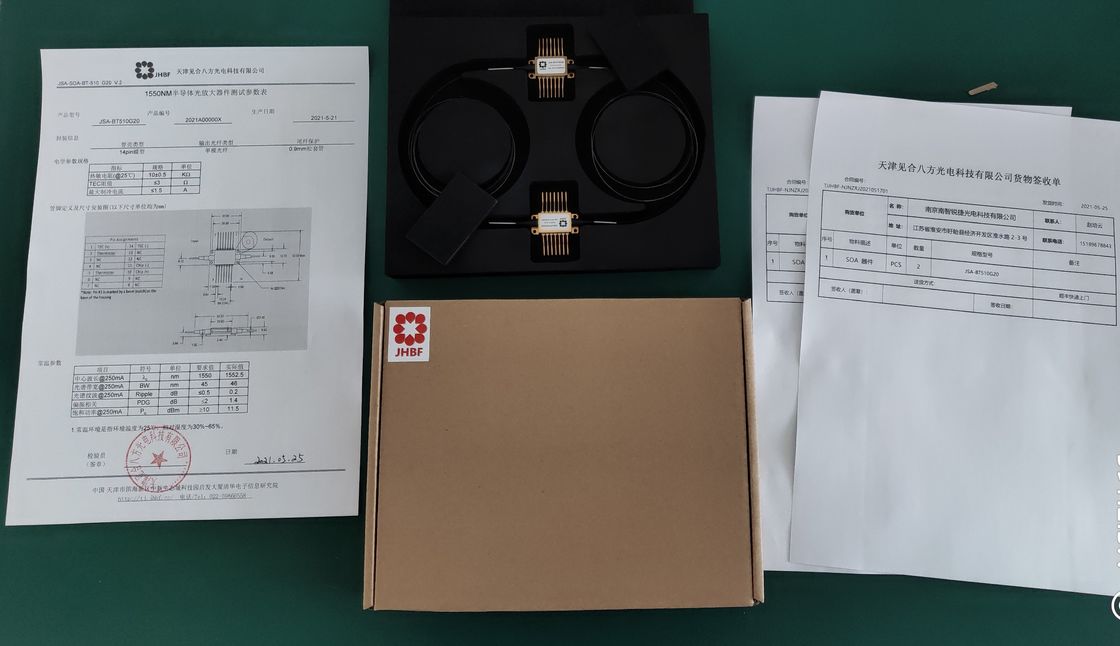

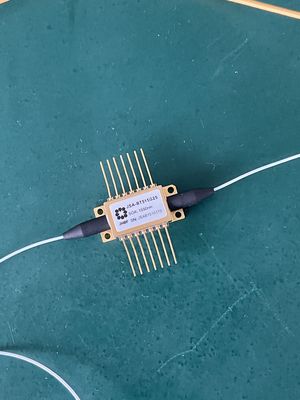

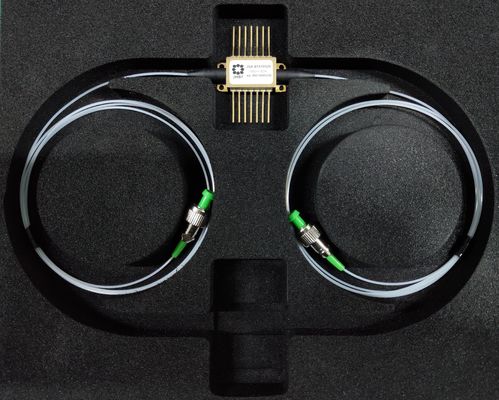

Janhoo 1550nm PM Butterfly SOA Semiconductor Optical Amplifier

Janhoo 1550nm PM Butterfly SOA Semiconductor Optical Amplifier
Janhoo 1550nm PM Butterfly SOA Semiconductor Optical Amplifier Janhoo 1550nm PM Butterfly SOA Semiconductor Optical Amplifier Janhoo 1550nm PM Butterfly SOA Semiconductor Optical Amplifier Janhoo 1550nm PM Butterfly SOA Semiconductor Optical Amplifier Janhoo 1550nm PM Butterfly SOA Semiconductor Optical Amplifier

Large Image :  Janhoo 1550nm PM Butterfly SOA Semiconductor Optical Amplifier

Product Details:
Place of Origin: TianJin
Brand Name: Janhoo
Model Number: JSA-BT525G35-PM
Payment & Shipping Terms:
Price: $1,300.00/sets 1-9 sets
Packaging Details: 1 pcs in 1 Cartoon
Supply Ability: 200 Piece/Pieces per Month
Contact Now

Janhoo 1550nm PM Butterfly SOA Semiconductor Optical Amplifier

Description
Type: Soa Semiconductor Optical Amplifier Use: FMCW LiDAR
Warranty Time: 3 Yrs Network: None
Wavelength: 1550nm 3dB Optical Bandwidth: 90~110nm
Forward Current(If): 1000mA(typical) Small Signal Gain: 35dB
Saturation Output Power(Psat): >23dBm(@If=1000mA) Polarization Dependent Gain(PDG): 2dB
Turn Off Extinction Ratio: >30dB Noise Figure: 6dB
Port: Tianjin Product Name: Janhoo Semiconductor Optical Amplifier

Janhoo 1550nm PM Butterfly SOA Semiconductor Optical Amplifier 0
Janhoo Semiconductor Optical Amplifier 14pin Butterfly 1550nm High Saturation Power SOA
Janhoo’s 1550nm PM Semiconductor Optical Amplifiers (SOAs) are used for optical amplification at 1550nm wavelength, which can significantly improve the output power. It is mainly used for FMCW LiDAR and tunable laser.

Janhoo Semiconductor Optical Amplifier Applications

* Used for FMCW Lidar to extend detection distance.
* Tunable Laser
* Research for PIC
* Datacenter Interconnection


Janhoo Semiconductor Optical Amplifier HighLights

* High Electric-optical Conversion Efficiency, Low Power Consumption.
* High Gain.
* High Saturation Power.
* Support polarization-maintaining.

Janhoo Semiconductor Optical Amplifier Typical Characteristics
Janhoo 1550nm PM Butterfly SOA Semiconductor Optical Amplifier 1
Janhoo 1550nm PM Butterfly SOA Semiconductor Optical Amplifier 2
Janhoo Semiconductor Optical Amplifier Specifications ( @25℃)
Parameter
Symbol
Working conditions
Min.
Typ.
Max.
Unit
Wavelength
λ
---
---
1550
---
nm
3dB Optical Bandwidth
Δλ
@-3dB
90
---
110
nm
Drive Current
If
---
---
1000
1500
mA
Saturation Power
Psat
If=1000mA
23
---
26
dBm
Small Signal Gain
G
---
---
---
35
dB
Turn off extinction ratio

---
30
---
35
dB
Noise Figure
Nf
---
---
6
---
dB
Polarization Dependent Gain
PDG
---
---
2.0
---
dB
Forward Voltage
Vf
---
---
---
1.8
V
Operating Temperature
TC
I=Iop
-10
---
70
℃
Storage Temperature
Tstg
---
-40
---
85
℃
Janhoo Semiconductor Optical Amplifier Dimensions and Pin Definition
Janhoo 1550nm PM Butterfly SOA Semiconductor Optical Amplifier 3
