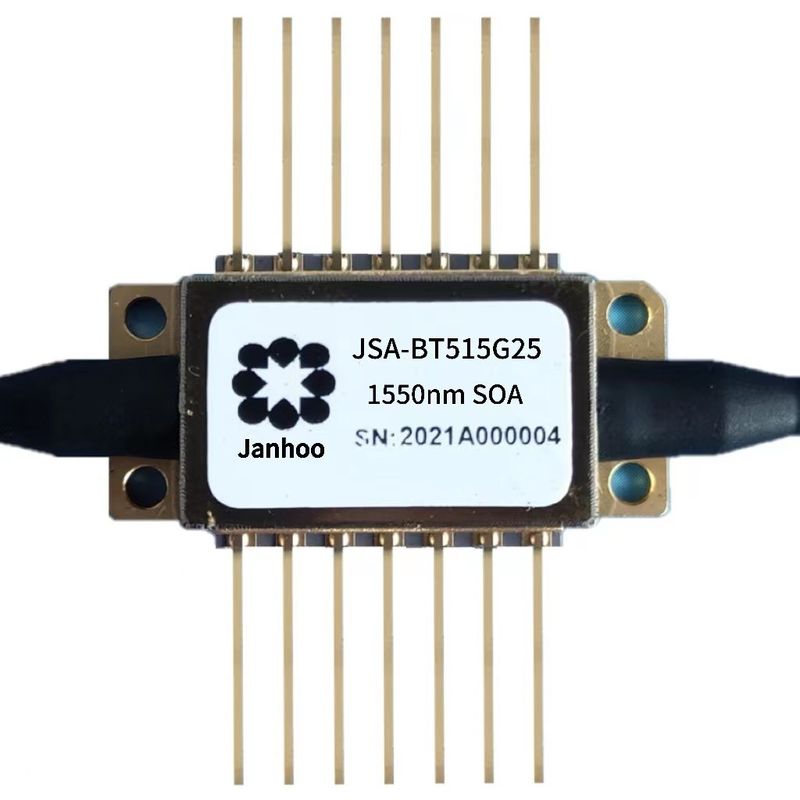

Janhoo 1550nm SOA Semiconductor Optical Amplifier Butterfly
Basic Properties
Place of Origin:
CHINA
Brand Name:
JANHOO
Model Number:
JSA-BT515G25
Trading Properties
Price:
$700.00/sets 1-9 sets
Supply Ability:
200 Piece/Pieces per Month
Product Summary
1550nm Semiconductor optical amplifier SOA Butterfly Janhoo’s 1550nm Semiconductor Optical Amplifiers (SOAs) are designed for high gain, high powerful, low PDG SOA which goes into the standard GR-468-CORE. Applications * Used for optical sensing system, to replace AOM+EDFA. * Used for FMCW Lidar to ...
Product Details
Type:
SOA
Use:
Fiber Sensing System
Warranty Time:
One Year
Network:
None
Wavelength:
1490nm~1590nm
3db Optical Bandwidth:
>55nm
Forward Current(If):
250mA(typical),400mA(max)
Small Signal Gain:
>25dB(@If=250mA)
Saturation Output Power(Psat):
>12dBm(@If=250mA)
Polarization Dependent Gain(PDG):
<2dB
Gain Ripple:
<1dB
Turn Off Extinction Ratio:
>55dB
Port:
Tianjin
Product Description

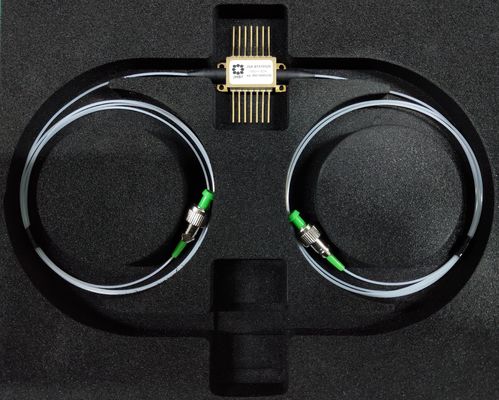

1550nm Semiconductor optical amplifier SOA Butterfly
Janhoo’s 1550nm Semiconductor Optical Amplifiers (SOAs) are designed for high gain, high powerful, low PDG SOA which goes into the standard GR-468-CORE.
Applications
* Used for optical sensing system, to replace AOM+EDFA.
* Used for FMCW Lidar to extend detection distance.
* Used for FMCW Lidar to extend detection distance.
* Used for PON network (FTTX) relay amplification.
HighLights
* High Electric-optical Conversion Efficiency, Low Power Consumption.
* Built-in Isolator.
* Low PDG.
* Built-in Isolator.
* Low PDG.
* Support polarization-maintaining amplification.
Typical Characteristics
Specifications ( @25℃)
|
Parameter
|
Symbol
|
Working conditions
|
Min.
|
Typ.
|
Max.
|
Unit
|
|
Wavelength
|
λ
|
---
|
1490
|
---
|
1590
|
nm
|
|
Operating Wavelength
|
Δλ
|
@-3dB
|
55
|
---
|
60
|
nm
|
|
Drive Current
|
If
|
---
|
---
|
250
|
400
|
mA
|
|
Saturation Power
|
Psat
|
If=120mA
|
12
|
---
|
15
|
dBm
|
|
Small Signal Gain
|
G
|
---
|
25
|
---
|
30
|
dB
|
|
Turn off extinction ratio
|
|
---
|
---
|
50
|
---
|
dB
|
|
Polarization Dependent Gain
|
PDG
|
---
|
---
|
1.0
|
2.0
|
dB
|
|
Forward Voltage
|
Vf
|
---
|
---
|
---
|
1.8
|
V
|
|
Spot Size
|
θL/θT
|
---
|
---
|
16/30
|
---
|
°
|
|
Operating Temperature
|
TC
|
I=Iop
|
-10
|
---
|
70
|
℃
|
|
Storage Temperature
|
Tstg
|
---
|
-40
|
---
|
85
|
℃
|
Dimensions and Pin Definition
