Janhoo’s 1310nm Semiconductor Optical Amplifiers (SOAs) chip on carrier are designed for high gain, high powerful, low PDL and wide
band SOA which goes into the standard GR-468-CORE.

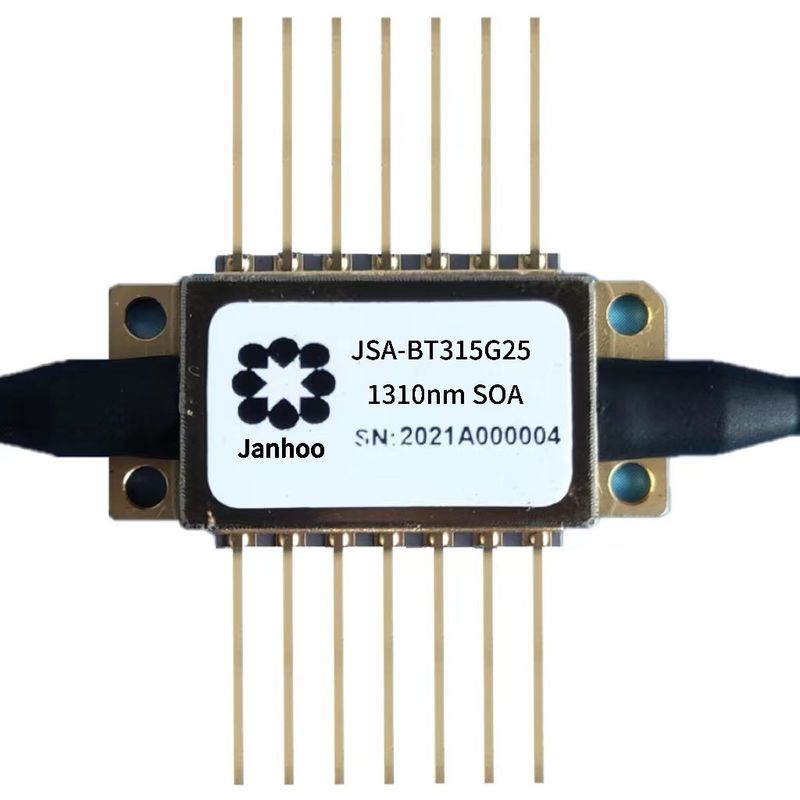

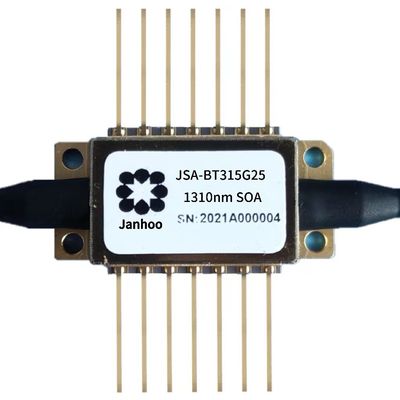

Janhoo 15dBm 1310nm G=25 high gain Semiconductor Optical Amplifier SOA
Basic Properties
Place of Origin:
CHINA
Brand Name:
JANHOO
Model Number:
JSA-BT315G25
Trading Properties
Price:
$550.00/sets 1-9 sets
Supply Ability:
200 Piece/Pieces per Month
Product Summary
1310 SOA Janhoo’s 1310nm Semiconductor Optical Amplifiers (SOAs) chip on carrier are designed for high gain, high powerful, low PDL and wide band SOA which goes into the standard GR-468-CORE. Applications * Semiconductor Optical Amplifiers (SOAs) in butterfly or small box packages goes for 40G/100G ...
Product Details
Type:
Soa
Use:
Optical Communication
Warranty Time:
3 Yrs
Network:
None
Port:
Tianjin
Product Description
1310 SOA
Applications
* Semiconductor Optical Amplifiers (SOAs) in butterfly or small box packages goes for 40G/100G LWDM High-Speed amplification.
* Improve the budget of optical power, integrate in ROSA and TOSA of 100G optical transceiver.
* Improve the budget of optical power, integrate in ROSA and TOSA of 100G optical transceiver.
* It can be Integrated in Silicon-based integrated photonic devices, compensate for the loss of 1310nm optical signals.
Typical Characteristics
Specifications(chip temperature @25℃)
|
Parameter
|
Symbol
|
Working conditions
|
Min.
|
Typ.
|
Max.
|
Unit
|
|
working Wavelength
|
λ
|
---
|
1260
|
1310
|
1340
|
nm
|
|
Operating Wavelength
|
Δλ
|
@-3dB
|
---
|
45
|
---
|
nm
|
|
Drive Current
|
If
|
---
|
---
|
250
|
350
|
mA
|
|
Saturation Power
|
Psat
|
If=250mA
|
15
|
---
|
---
|
dBm
|
|
Small signal Gain
|
G
|
---
|
15
|
---
|
25
|
dB
|
|
Noise Figure
|
NF
|
---
|
---
|
7
|
---
|
dB
|
|
Polarization Dependent Gain
|
PDG
|
---
|
---
|
---
|
2.0
|
dB
|
|
Forward Voltage
|
Vf
|
---
|
---
|
---
|
1.8
|
V
|
|
Spot Size
|
θL/θT
|
---
|
---
|
16/30
|
---
|
°
|
|
Operating Temperature
|
TC
|
I=Iop
|
-10
|
---
|
70
|
℃
|
|
Storage Temperature
|
Tstg
|
---
|
-40
|
---
|
85
|
℃
|
STRUCTURE
