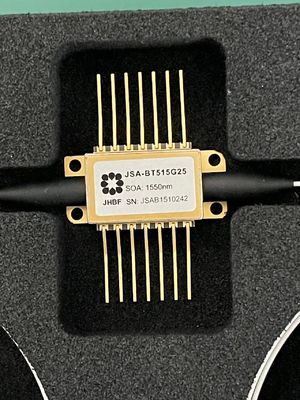

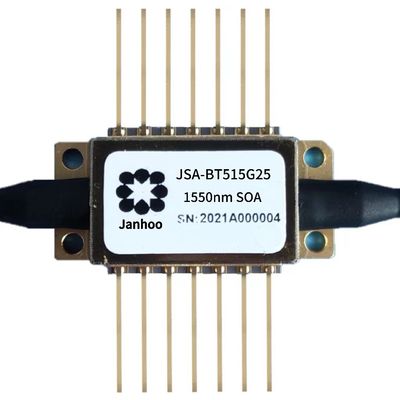

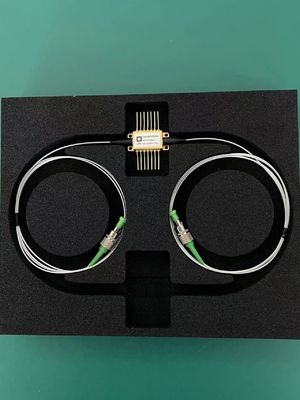

Janhoo 1550nm G=35 Polarization Maintaining Butterfly SOA Semiconductor Optical Amplifier Low power consumption
Basic Properties
Place of Origin:
CHINA
Brand Name:
JANHOO
Model Number:
JSA-BT525G35-PM
Trading Properties
Price:
$1,800.00/sets 1-9 sets
Product Summary
Product Features All process made in China, independent and controllable Low power consumption, typical drive current 120mA, to meet the needs of high-speed ROSA low-power requirements Support temperature monitoring and TEC thermoelectric control, stable operation in full temperature operating range ...
Product Details
Type:
SOA
Gain:
35 DB
Small Signal Gain:
35dB
Input/Output Connector Type:
FC/APC
Port:
Tianjin
Manufacturer:
JHBF/ Janhoo
Style:
Professional
Wechat:
15110138935
Output Type:
FC/APC
Product Description
Product Features
- All process made in China, independent and controllable
- Low power consumption, typical drive current 120mA, to meet the needs of high-speed ROSA low-power requirements
- Support temperature monitoring and TEC thermoelectric control, stable operation in full temperature operating range
- Customisation service: support for higher integration devices such as polarization-maintaining, integrated isolator, integrated PD optical power monitoring and so on
Product Applications
- Applied in distributed fiber optic sensing system to replace acousto-optic modulator for optical switching function
- Applied in broad spectrum light source, such as fiber grating demodulator broad spectrum light source
- Application in optical communication system, to achieve 1550 wavelength optical signal amplification, can replace part of the EDFA application
- Apply to 1550nm solid-state LIDAR or FM continuous wave LIDAR, combined with narrow linewidth lasers to generate pulsed light
Product Specifications
Typical characteristics
Structure Dimensions and Pin Definitions
