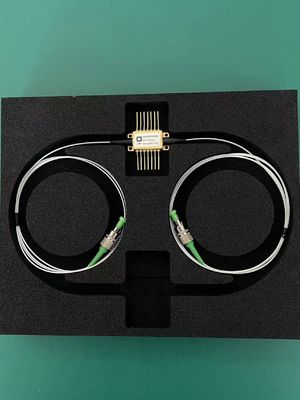

Janhoo Advanced 1550nm PM SOA 14pin Butterfly For Optical Fiber Sensing System Janhoo Semiconductor Optical Amplifier

Janhoo Advanced 1550nm PM SOA 14pin Butterfly For Optical Fiber Sensing System Janhoo Semiconductor Optical Amplifier
Janhoo Advanced 1550nm PM SOA 14pin Butterfly For Optical Fiber Sensing System Janhoo Semiconductor Optical Amplifier Janhoo Advanced 1550nm PM SOA 14pin Butterfly For Optical Fiber Sensing System Janhoo Semiconductor Optical Amplifier Janhoo Advanced 1550nm PM SOA 14pin Butterfly For Optical Fiber Sensing System Janhoo Semiconductor Optical Amplifier Janhoo Advanced 1550nm PM SOA 14pin Butterfly For Optical Fiber Sensing System Janhoo Semiconductor Optical Amplifier

Large Image :  Janhoo Advanced 1550nm PM SOA 14pin Butterfly For Optical Fiber Sensing System Janhoo Semiconductor Optical Amplifier

Product Details:
Place of Origin: TianJin
Brand Name: Janhoo
Model Number: JSA-BT515G25-PM
Payment & Shipping Terms:
Price: $900.00/sets 1-9 sets
Packaging Details: 1 pcs in 1 Cartoon
Supply Ability: 200 Piece/Pieces per Month
Contact Now

Janhoo Advanced 1550nm PM SOA 14pin Butterfly For Optical Fiber Sensing System Janhoo Semiconductor Optical Amplifier

Description
Type: Soa Semiconductor Optical Amplifier Use: Fiber Sensing System
Warranty Time: 3 Yrs Wavelength: 1490nm~1590nm
3dB Optical Bandwidth: >55nm Forward Current(If): 250mA(typical),400mA(max)
Small Signal Gain: >25dB(@If=250mA) Saturation Output Power(Psat): >12dBm(@If=250mA)
Polarization Dependent Gain(PDG): <2dB Gain Ripple: <1dB
Turn Off Extinction Ratio: >55dB Port: Tianjin
Product Name: Janhoo Semiconductor Optical Amplifier

Janhoo Advanced 1550nm PM SOA 14pin Butterfly For Optical Fiber Sensing System Janhoo Semiconductor Optical Amplifier 0
Janhoo Semiconductor Optical Amplifier 1550nm PM Semiconductor optical amplifier SOA Butterfly
Janhoo’s 1550nm PM (Polarization maintaining) Semiconductor Optical Amplifiers (SOAs) are designed for high gain, high powerful, low PDG SOA which goes into the standard GR-468-CORE.

Janhoo Semiconductor Optical Amplifier Applications

* Used for optical sensing system, to replace AOM+EDFA.
* Used for FMCW Lidar to extend detection distance.
* Used for PON network (FTTX) relay amplification.


Janhoo Semiconductor Optical Amplifier HighLights

* High Electric-optical Conversion Efficiency, Low Power Consumption.
* Built-in Isolator.
* Low PDG.
* Support polarization-maintaining amplification.

Janhoo Semiconductor Optical Amplifier Typical Characteristics
Janhoo Advanced 1550nm PM SOA 14pin Butterfly For Optical Fiber Sensing System Janhoo Semiconductor Optical Amplifier 1
Janhoo Semiconductor Optical Amplifier Specifications ( @25℃)
Parameter
Symbol
Working conditions
Min.
Typ.
Max.
Unit
Wavelength
λ
---
1490
---
1590
nm
Operating Wavelength
Δλ
@-3dB
55
---
60
nm
Drive Current
If
---
---
250
400
mA
Saturation Power
Psat
If=120mA
12
---
15
dBm
Small Signal Gain
G
---
25
---
30
dB
Turn off extinction ratio

---
---
50
---
dB
Polarization Dependent Gain
PDG
---
---
1.0
2.0
dB
Forward Voltage
Vf
---
---
---
1.8
V
Spot Size
θL/θT
---
---
16/30
---
°
Operating Temperature
TC
I=Iop
-10
---
70
℃
Storage Temperature
Tstg
---
-40
---
85
℃
Janhoo Semiconductor Optical Amplifier Dimensions and Pin Definition
Janhoo Advanced 1550nm PM SOA 14pin Butterfly For Optical Fiber Sensing System Janhoo Semiconductor Optical Amplifier 2
