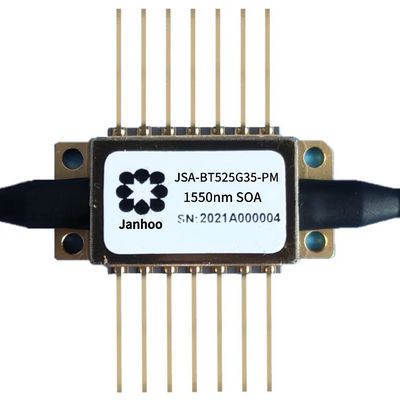

Janhoo 1550nm PM Butterfly SOA High Saturation Power Semiconductor Optical Amplifier
Basic Properties
Place of Origin:
TianJin
Brand Name:
Janhoo
Model Number:
JSA-BT525G35-PM
Trading Properties
Price:
$1,300.00/sets 1-9 sets
Supply Ability:
200 Piece/Pieces per Month
Product Summary
Janhoo Semiconductor Optical Amplifier 14pin Butterfly 1550nm High Saturation Power SOA Janhoo’s 1550nm PM Semiconductor Optical Amplifiers (SOAs) are used for optical amplification at 1550nm wavelength, which can significantly improve the output power. It is mainly used for FMCW LiDAR and tunable ...
Product Details
Type:
Soa Semiconductor Optical Amplifier
Use:
FMCW LiDAR
Warranty Time:
3 Yrs
Network:
None
Wavelength:
1550nm
3db Optical Bandwidth:
90~110nm
Forward Current(If):
1000mA(typical)
Small Signal Gain:
35dB
Saturation Output Power(Psat):
>23dBm(@If=1000mA)
Polarization Dependent Gain(PDG):
2dB
Turn Off Extinction Ratio:
>30dB
Noise Figure:
6dB
Port:
Tianjin
Product Name:
Janhoo Semiconductor Optical Amplifier
Product Description

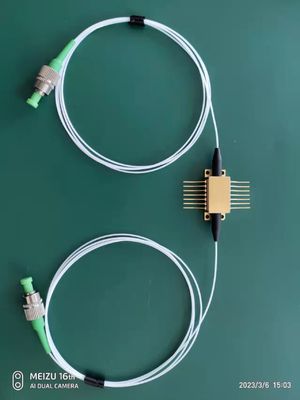

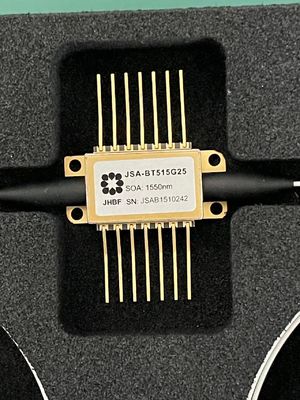

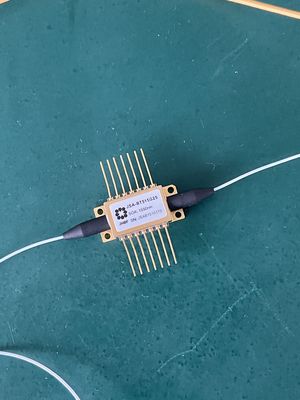

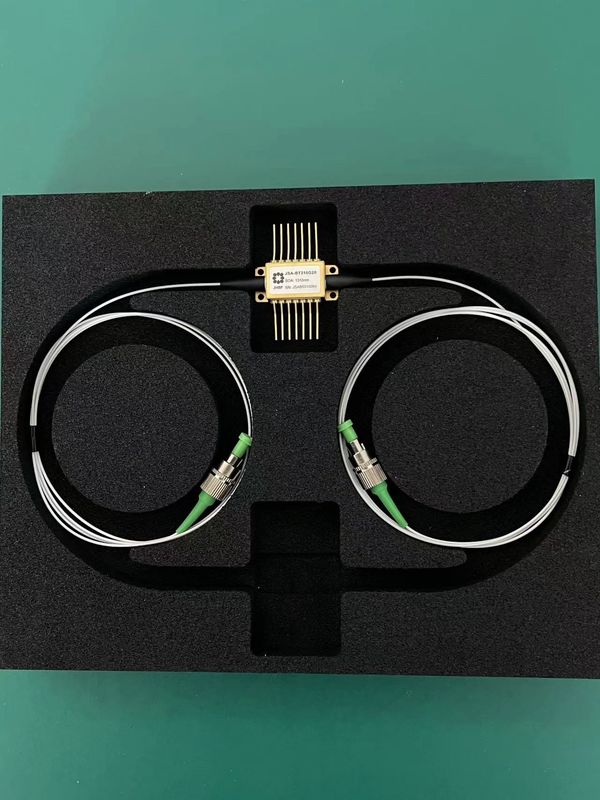

Janhoo Semiconductor Optical Amplifier 14pin Butterfly 1550nm High Saturation Power SOA
Janhoo’s 1550nm PM Semiconductor Optical Amplifiers (SOAs) are used for optical amplification at 1550nm wavelength, which can significantly improve the output power. It is mainly used for FMCW LiDAR and tunable laser.
Janhoo Semiconductor Optical Amplifier Applications
* Used for FMCW Lidar to extend detection distance.
* Tunable Laser
* Research for PIC
* Datacenter Interconnection
* Tunable Laser
* Research for PIC
* Datacenter Interconnection
Janhoo Semiconductor Optical Amplifier HighLights
* High Electric-optical Conversion Efficiency, Low Power Consumption.
* High Gain.
* High Saturation Power.
* Support polarization-maintaining.
* High Gain.
* High Saturation Power.
* Support polarization-maintaining.
Janhoo Semiconductor Optical Amplifier Typical Characteristics
Janhoo Semiconductor Optical Amplifier Specifications ( @25℃)
|
Parameter
|
Symbol
|
Working conditions
|
Min.
|
Typ.
|
Max.
|
Unit
|
|
Wavelength
|
λ
|
---
|
---
|
1550
|
---
|
nm
|
|
3dB Optical Bandwidth
|
Δλ
|
@-3dB
|
90
|
---
|
110
|
nm
|
|
Drive Current
|
If
|
---
|
---
|
1000
|
1500
|
mA
|
|
Saturation Power
|
Psat
|
If=1000mA
|
23
|
---
|
26
|
dBm
|
|
Small Signal Gain
|
G
|
---
|
---
|
---
|
35
|
dB
|
|
Turn off extinction ratio
|
|
---
|
30
|
---
|
35
|
dB
|
|
Noise Figure
|
Nf
|
---
|
---
|
6
|
---
|
dB
|
|
Polarization Dependent Gain
|
PDG
|
---
|
---
|
2.0
|
---
|
dB
|
|
Forward Voltage
|
Vf
|
---
|
---
|
---
|
1.8
|
V
|
|
Operating Temperature
|
TC
|
I=Iop
|
-10
|
---
|
70
|
℃
|
|
Storage Temperature
|
Tstg
|
---
|
-40
|
---
|
85
|
℃
|
Janhoo Semiconductor Optical Amplifier Dimensions and Pin Definition
