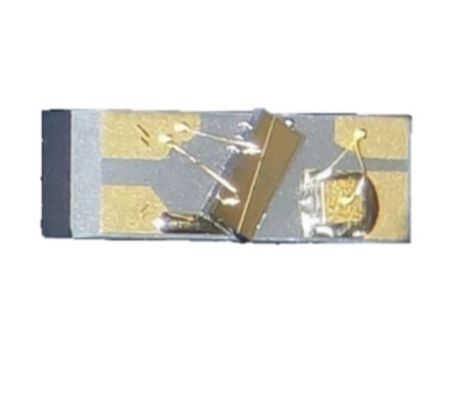

Janhoo 1550nm G=25dB SOA Semiconductor Optical Amplifier Chip COC high gain G=25dB 250mA
Basic Properties
Place of Origin:
Tianjin, China
Brand Name:
Janhoo
Model Number:
JSA-S5515G25
Trading Properties
Price:
$600.00/pieces 1-9 pieces
Product Summary
Product Features COC chips are all produced in China, with independent process control Consistent with the structure and size of mainstream SOA manufacturers, strong compatibility Cost-effective, short lead time, fast delivery, customisation and rapid iteration Product Applications Replacement of ...
Product Details
Features:
Cost-effective Short Lead Time And Rapid Iteration
Packaging Type:
Full Packed
Function:
COC Chips Are All Produced In China With Independent Process Control, Consistent With The Structure And Size Of Mainstream SOA Manufacturers Strong Compatibility, Cost-effective Short Lead Time Fast Delivery Customisation And Rapid Iteration
Application:
SOA In Butterfly Or Small Box Package For Optical Amplification Of High-speed Service Signals, Integrated In The ROSA Or TOSA Of 100G Optical Modules To Improve Optical Power Budgets, Used In Silicon Photonic Integration Products To Compensate For Transmis
Operating Temperature:
Min -40, Max 80
Type:
1550nm SOA Semiconductor Optical Amplifier Chips COCs, COC Chip
Package / Case:
COC
Voltage - Supply:
250mA
Series:
1550nm SOA Semiconductor Optical Amplifier Chips COCs
Mounting Type:
Consistent With The Structure And Size Of Mainstream SOA Manufacturers Strong Compatibility
Size / Dimension:
Details Below
Description:
COC Chip
Manufacturing Date Code:
20231112
Manufacturer:
Janhoo
WeChat:
WeChat
Product Name:
SOA Chips
Style:
Professional
Quality:
100% Original 100% Brand
Product Description
Product Features
- COC chips are all produced in China, with independent process control
- Consistent with the structure and size of mainstream SOA manufacturers, strong compatibility
- Cost-effective, short lead time, fast delivery, customisation and rapid iteration
Product Applications
- Replacement of acousto-optic modulators for optical switching in fiber optic sensing systems
- Compensation of optical light path losses in silicon photonic integration devices
- For generating high power laser pulses in LIDAR applications
- Replacement of EDFA for 1550 nm optical amplification in optical communication systems
Typical characteristics
Product Specifications (Chip Temperature @ 25°C)

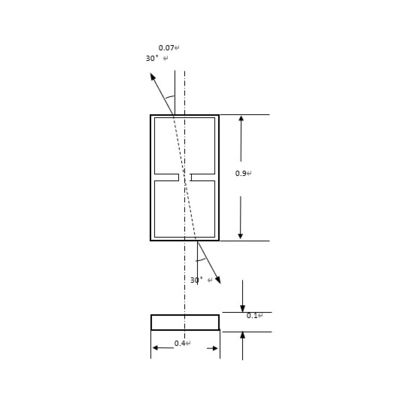

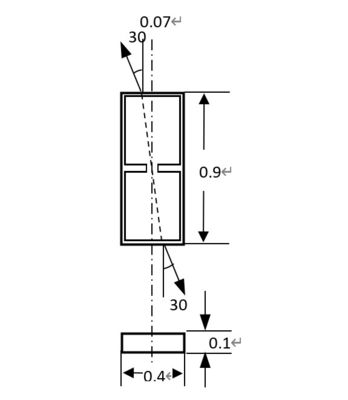

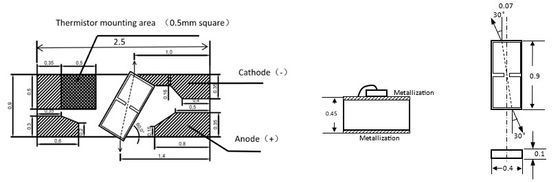

Structure Dimensions(mm)
